How Mechanical Expand Chuck Manufacturers Contribute to Industrial Efficiency

Mechanical Expand Chuck manufacturers play a vital role in supporting various industrial processes that require precise roll handling, such as printing, laminating, slitting, and rewinding. Their equipment is essential in industries that deal with web materials like paper, film, foil, textiles, and flexible packaging. A mechanical expand chuck is a core-holding device that relies on mechanical expansion rather than air pressure, delivering firm grip and alignment without the use of pneumatic systems.

This mechanical gripping solution allows operators to mount and dismount rolls quickly while maintaining torque transmission, concentricity, and rotational accuracy. As industries demand higher efficiency and reduced downtime, mechanical expand chucks offer a reliable and straightforward option for web handling.

What Is a Mechanical Expand Chuck?

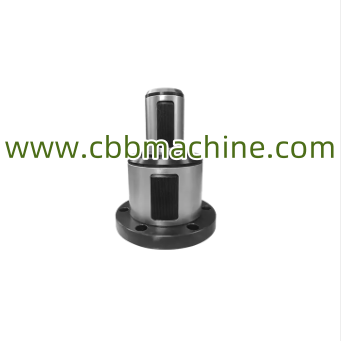

A mechanical expand chuck is designed to fit inside the core of a roll, such as a paper or film roll, and hold it securely in place during winding or unwinding. When torque is applied, the expanding elements—commonly keys or lugs—push outward to grip the inside of the core. This expansion is purely mechanical, meaning it does not depend on external power sources like compressed air or electricity.

Mechanical expand chucks come in different models, including flange-mounted or shaft-mounted options. They are often made from hardened steel or aluminum alloy and are suitable for both light-duty and heavy-duty industrial applications.

Benefits of Using Mechanical Expand Chucks

1. Simplicity and Reliability

Mechanical expand chucks are simple in structure and highly reliable. Without needing external air or hydraulic support, they reduce the chances of system failure due to power loss or leakage.

2. Maintenance Friendly

Because there are fewer moving and sensitive parts, these chucks are easy to maintain and less prone to wear compared to pneumatic systems.

3. Accurate Torque Transmission

The mechanical expansion ensures firm contact with the core, helping to prevent slippage and enabling accurate torque transfer during high-speed operations.

4. Cost Efficiency

Using mechanical chucks can lead to savings on energy and maintenance costs over time, especially in high-throughput production environments.

5. Versatility

They are compatible with various core materials such as paperboard, plastic, and metal, making them useful across multiple sectors.

Applications Across Industries

Mechanical expand chucks are widely used in the following industries:

Flexible Packaging: For winding and unwinding films and foils with accurate tension control.

Printing: Ensures stability and precise alignment of print media rolls.

Paper Converting: Handles large rolls of paper in slitting, rewinding, and laminating operations.

Nonwovens and Textiles: Maintains tension during winding processes for lightweight materials.

Labeling and Tapes: Used for high-precision rolls that require minimal deviation.

These applications demand stability and performance, which are key advantages of using mechanical expand chucks from experienced manufacturers.

Factors to Consider When Choosing a Mechanical Expand Chuck

When sourcing a mechanical expand chuck, several technical parameters should be taken into account:

Core Inner Diameter: The chuck must match the core size for proper grip.

Load and Torque Requirements: Choose a design suitable for the operating speed and weight of your material rolls.

Mounting Style: Consider whether a flange-mount or shaft-mount version works better for your machine.

Material and Surface Treatment: Depending on your production environment, stainless steel or anodized surfaces may be needed for corrosion resistance.

Frequency of Roll Changes: Quick-lock and tool-free designs may be more suitable for operations with frequent changeovers.

Manufacturers typically offer customization options to fit different shaft sizes, torque capacities, and operating conditions.

Future Trends in Mechanical Expand Chuck Design

As automation and smart manufacturing technologies grow, mechanical expand chucks are also being refined. Newer designs are focusing on faster installation, improved material wear resistance, and compatibility with digital monitoring systems that track rotation, load, and alignment. Although the mechanical principle remains simple, innovation in design and materials continues to improve operational efficiency.

For more information about mechanical expand chucks and related machinery components, please visit: www.cbbmachine.com.
