A wax injection machine is a vital piece of equipment used in the investment casting or lost-wax casting process. It plays a key role in producing high-precision components for industries such as aerospace, automotive, jewelry, and medical devices. This article explores what a wax injection machine is, how it works, and why it's crucial in modern manufacturing.

Visit Us: https://www.ic-machines.com/wax-injection-machine/

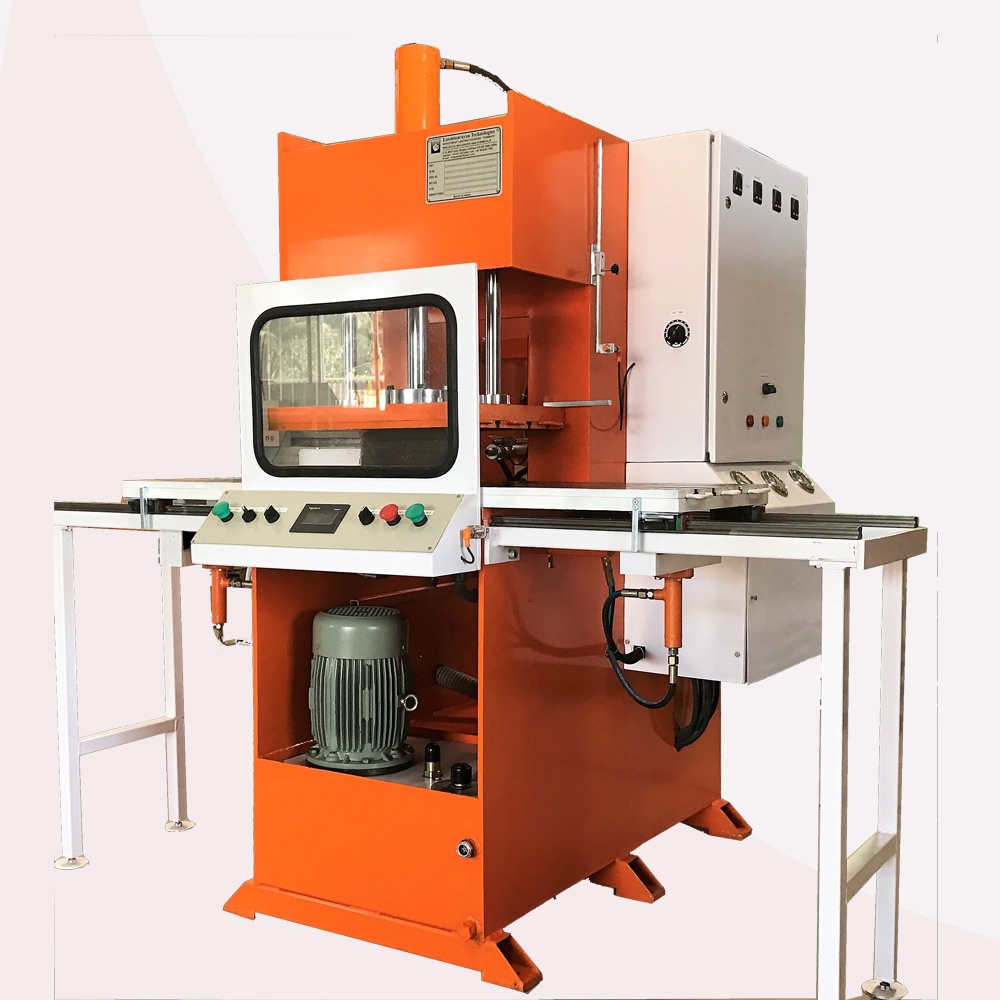

What is a Wax Injection Machine?

A wax injection machine is used to create wax patterns by injecting molten wax into a metal mold, also called a die. These wax patterns replicate the final metal part and are later used to form ceramic shells, which serve as molds for metal casting.

Investment casting starts with this step: creating accurate wax replicas of the part. The better the wax pattern, the higher the precision and surface finish of the final cast product.

How Does a Wax Injection Machine Work?

The basic operation of a wax injection machine involves the following steps:

1. Heating the Wax
   The machine melts wax or a wax-based compound to a specified temperature.

2. Filling the Mold
   The molten wax is injected into a pre-designed die using pressure — usually pneumatic or hydraulic.

3. Cooling
   The wax solidifies in the shape of the die cavity.

4. Ejection
   Once the wax hardens, the mold is opened and the wax pattern is removed.

These wax patterns are then assembled onto a tree-like structure, coated with ceramic material, and eventually melted out in a furnace before molten metal is poured in.

Types of Wax Injection Machines

Depending on production needs, wax injection machines are available in several configurations:

1. Manual Wax Injection Machines

• Low-cost and compact

• Ideal for small-scale or custom operations

• Operator-controlled injection

2. Semi-Automatic Machines

• Pressure and temperature controlled

• Greater consistency than manual types

• Suitable for medium-volume production

3. Fully Automatic Wax Injection Machines

• Controlled via PLC or touchscreen interface

• Offers real-time monitoring and programmable settings

• Designed for high-volume industrial use

 Key Features of Modern Wax Injection Machines

Modern wax injection machines come equipped with advanced features, such as:

• Precise temperature and pressure control

• Vacuum-assisted injection to eliminate air bubbles

• Multi-cavity molds for higher output

• Touchscreen operation panels

• Energy-efficient heating systems

These features ensure consistent quality, reduce cycle times, and increase overall productivity.

Applications of Wax Injection Machines

Wax injection machines are used across a wide range of industries:

Advantages of Using a Wax Injection Machine

✅ High precision and repeatability

✅ Improved surface finish

✅ Reduced material waste

✅ Lower labor cost (especially with automation)

✅ Compatible with various wax types

Choosing the Right Wax Injection Machine

When selecting a wax injection machine for your operation, consider the following:

• Production volume

• Required pattern size and complexity

• Automation level

• Ease of maintenance

• After-sales support and spare parts availability

 Conclusion

The wax injection machine is a cornerstone of the investment casting process. It ensures the production of consistent, high-quality wax patterns that directly impact the final casting’s accuracy, strength, and surface finish. Whether you’re a jewelry maker or a high-volume aerospace manufacturer, investing in the right wax injection technology is essential for efficient and cost-effective production.
